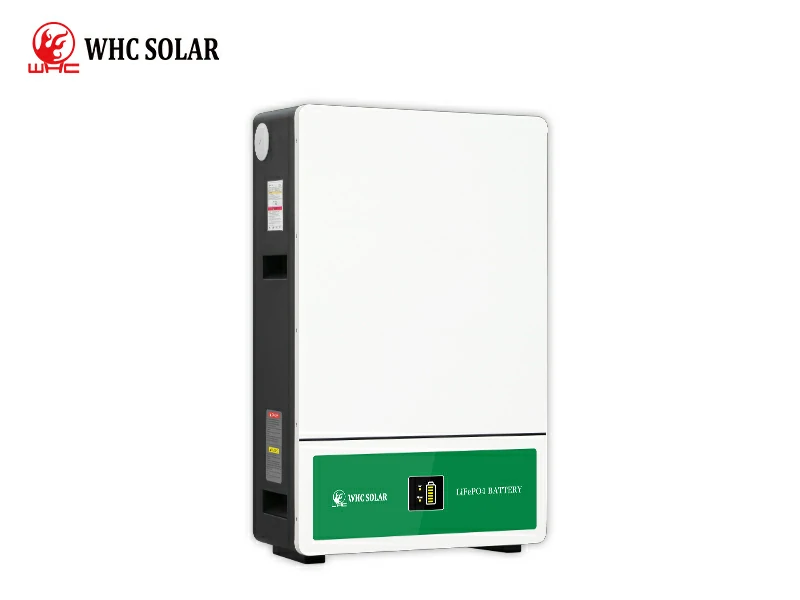

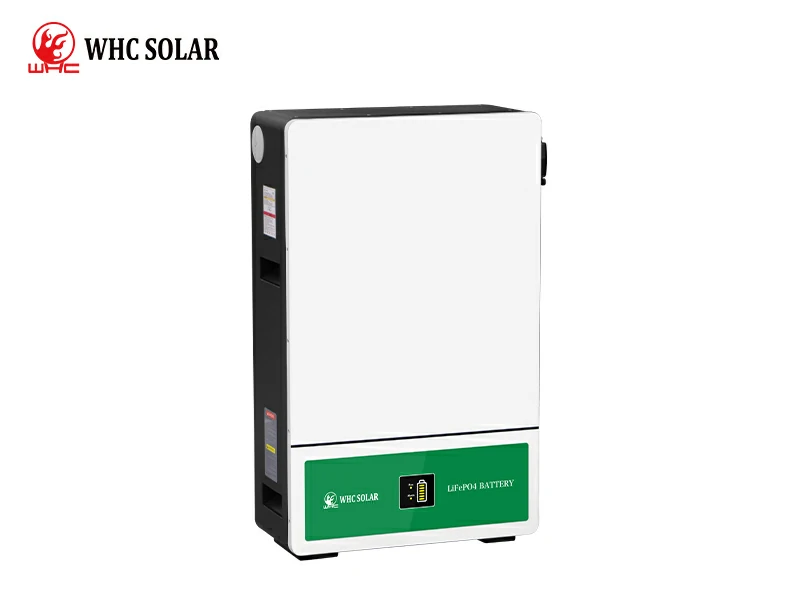

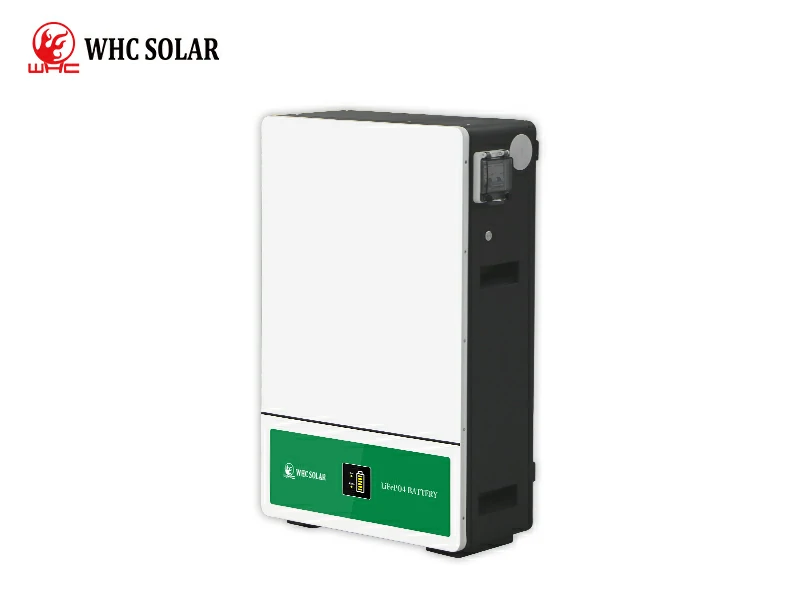

WHC SOLAR’s Powerwall Lithium Battery uses EVE and BYD battery cells, which are in high reliability and have long service time with 3 capacity options: 5kwh 10kwh, and 15kwh. The Battery voltage is 51.2V, and built-in BMS protection supports simultaneous communication and docking with multiple inverter brands.
Many solar product agents and energy storage system distributors, wholesalers, and retailers place orders from us once and once again for WHC power wall lithium batteries.
Our solar power system does not emit greenhouse gasses, making them a sustainable source of electricity.
Items | Specification | Quantity |
---|---|---|
Inverter | 192V 10KW IGBT Pure Sine Wave | 1 |
Controller | 192V 60A MPPT | 1 |
Solar Panel | 330w Mono High Efficiency | 8 |
Battery | 24V 120AH Gel Batteries | 4 |
Combiner Box | N4 Waterproof IP65 | 1 |
Accessory | Battery Cable RV 1*35mm*50cm | 5 |
Model
|
WHC-P-51.2V100AH
|
WHC-P-51.2V200AH
|
WHC-P-51.2V300AH |
Nominal Voltage
|
51.2V
|
51.2V
|
51.2V |
Nominal Capacity
|
100Ah
|
200Ah
|
300Ah |
Energy
|
5120Wh
|
10240Wh
|
15360Wh |
Charging Cut-off Voltage
|
56.16 V
|
||
Discharge Cut-off Voltage
|
45.6 V | ||
Recommend charge/discharge current
|
50A
|
100A
|
100A
|
Maximum continuous charge/discharge current
|
100A
|
200A
|
200A
|
Charge temperature
|
0-55 ℃
|
||
Discharge temperature
|
-20-60 ℃
|
||
Installation
|
Wall mounted
|
||
Dimension
|
440*500*142mm
|
442*820*142mm | 660*820*140mm |
Weight
|
45.88KG
|
78.85KG
|
120.77KG |
Case Material
|
Metal
|
Metal
|
Metal |
Communication
|
RS232, CAN RS485
|
