WHC SOLAR’s Powerwall Lithium Battery uses EVE and BYD battery cells, which are in high reliability and have long service time with 3 capacity options: 5kwh 10kwh, and 15kwh. The Battery voltage is 51.2V, and built-in BMS protection supports simultaneous communication and docking with multiple inverter brands.
Many solar product agents and energy storage system distributors, wholesalers, and retailers place orders from us once and once again for WHC power wall lithium batteries.
Nuestro sistema de energía solar no emite gases de efecto invernadero, convirtiéndolos en una fuente sostenible de electricidad.
Elementos | Especificación | Cantidad |
---|---|---|
Inversor | 192V 10KW IGBT Onda sinusoidal pura | 1 |
Controlador | 192MPPT V 60A | 1 |
Panel solar | 330w Mono de alta eficiencia | 8 |
Batería | 24Baterías de gel V 120AH | 4 |
Caja combinadora | N4 resistente al agua IP65 | 1 |
Accesorio | Cable de batería RV 1*35mm*50cm | 5 |
Modelo
|
WHC-P-51.2V100AH
|
WHC-P-51.2V200AH
|
WHC-P-51.2V300AH |
Voltaje nominal
|
51.2V
|
51.2V
|
51.2V |
Capacidad nominal
|
100ah
|
200ah
|
300ah |
Energía
|
5120¿Qué?
|
10240¿Qué?
|
15360¿Qué? |
Voltaje de corte de carga
|
56.16 V
|
||
Voltaje de corte de descarga
|
45.6 V | ||
Recomendar corriente de carga/descarga
|
50A
|
100A
|
100A
|
Maximum continuous charge/discharge current
|
100A
|
200A
|
200A
|
Temperatura de carga
|
0-55 ℃
|
||
Temperatura de descarga
|
-20-60 ℃
|
||

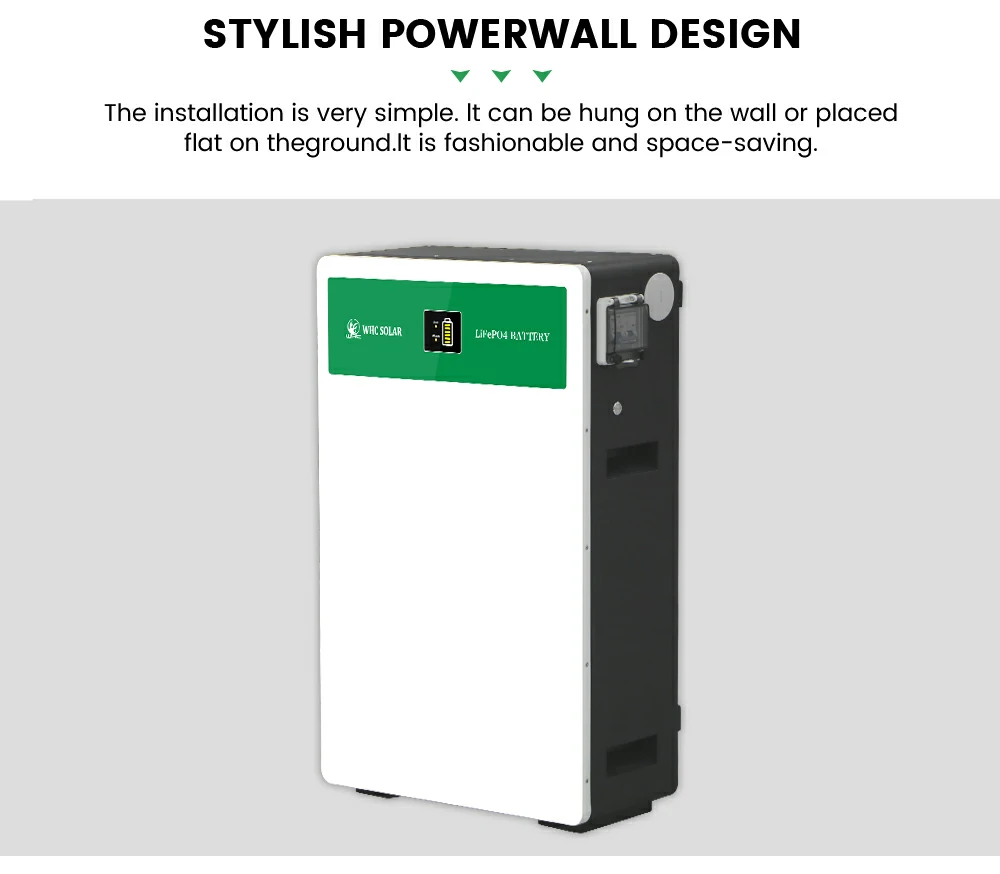

Instalación
|
montado en la pared
|
||
Dimensión
|
440*500*142milímetros
|
442*820*142milímetros | 660*820*140milímetros |
Peso
|
45.88KG
|
78.85KG
|
120.77KG |
Material de la Caja
|
Metal
|
Metal
|
Metal |
Comunicación
|
RS232, CAN RS485
|
