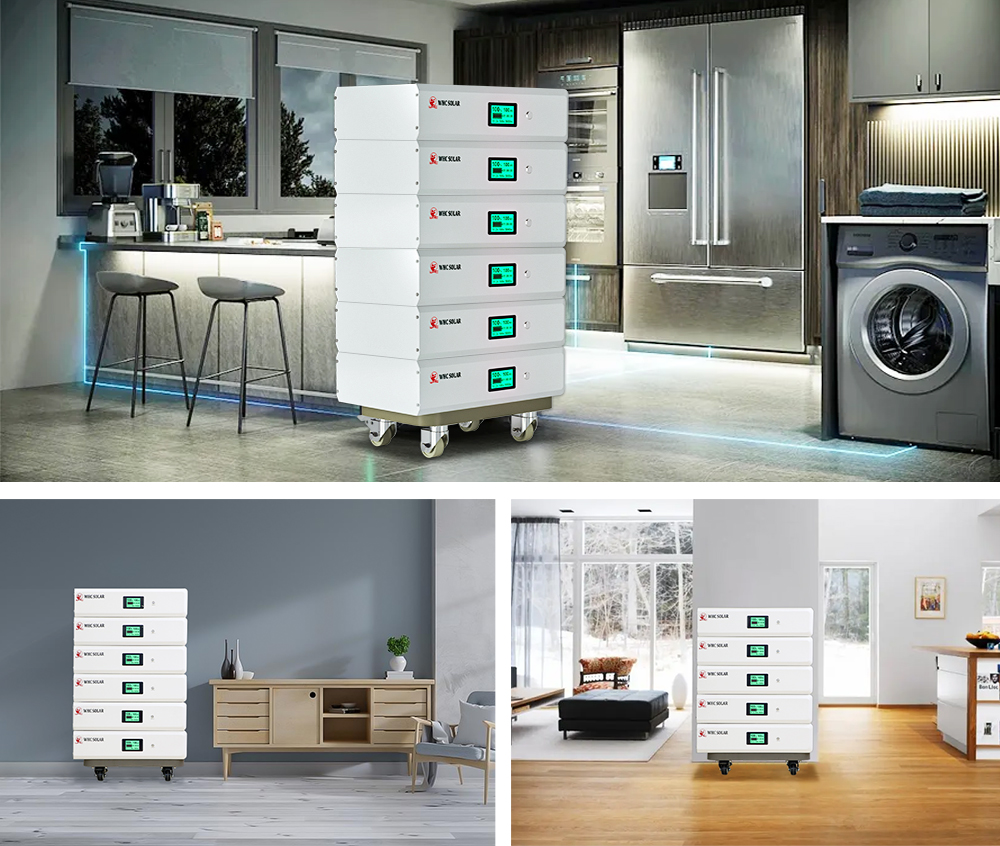

WHC SOLAR 30720Wh Stacked Lithium Batterye built-in BMS, 6000 times long life cycle. Increased safety performance and wide operating temperature range.Rated voltage is 51.2V, the capacity of each layer is 100Ah, a total of 600Ah, But usually called 48V 600Ah In market.
1. Scalable from 15 kWh to 35 kWh
2. Cobalt Free Lithium Iron Phosphate (LFP) Battery
3. Capable of High-Powered Emergency-Backup and Offff-Grid Function
4. Modular Design Simplififies Transport and Installation
5. Extend Anytime, easily Adapts to New Requirements
Our solar power system does not emit greenhouse gasses, making them a sustainable source of electricity.
Items | Specification | Quantity |
---|---|---|
Inverter | 192V 10KW IGBT Pure Sine Wave | 1 |
Controller | 192V 60A MPPT | 1 |
Solar Panel | 330w Mono High Efficiency | 8 |
Battery | 24V 120AH Gel Batteries | 4 |
Combiner Box | N4 Waterproof IP65 | 1 |
Accessory | Battery Cable RV 1*35mm*50cm | 5 |
Model | WHC-ESS-30KWh |
Battery Module | 51.2V600Ah |
Battery Energy | 30KWh |
Number of battery Modules | 6 |
Max. output power | 25.2KW |
BMS Max Output Current | 100A |
DC Voltage Range | 44.8V~58.4V |
Inverter Working voltage range(single phase system) | 200V~240V |
Operating voltage range(three phase system) | 340V~600V |
Display | SOC status indicator, the information of Battery, Inverter, load, PV charging, Grid |
Communication | RS485 /RS232/ CAN(Limit to system parallel) |
Dimension (W*D*H) | 640*400*1025mm |
Weight (Floor stand included) | 264KG |
Installation Method | Ground Mounting |
Installation Enviroment | Indoor/Outdoor |
Working Temerature | -20℃~+55℃ |
IP Rating | IP65 |
Battery Cell | LiFePO4,Lithium Iron Phosphate |
Scalability | Up to 16 modules support in parallel |
