Solar Power Station

2100.101 2

(02)Landing Page banner

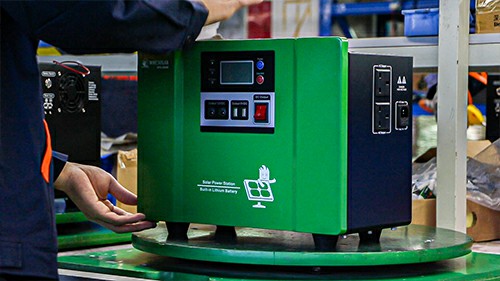

Solar 500W 1000W Portable Power Station

Portable power station capable of meeting your power needs anywhere,and create a clean and energy-saving environment.

Solar 2KW 3KW 5KW 10KW Power Station

Solar 2KW 3KW 5KW 10KW Power Station covering the electrical needs of all household appliances;Adopting all-in-one design, which is easier to install.

Model	SPS-500W	SPS-1000W	SPS-2000W	SPS-3000W	SPS-5000W	SPS-10KW
System Voltage	12V	24V	24V	48V	48V	48V
Inverter
Rated Power	500W	1000W	2000W	3000W	5000W	10KW
Input Voltage Range	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)
Output Voltage	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)	220V-240V,110-120V(optional)
Output Frequency
Output Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Built-in Lifepo4 Lithium	640WH	1280WH	2560WH	3430WH	5120WH	10240WH
Solar Input(Optional)
Mono Solar Panel	100W*2pcs	160W*2pcs	160W*4pcs	450W*2pcs	450W*3pcs	450W*6pcs
Range Of Charging Voltage	18-55Vdc	30-55Vdc	30-150Vdc	60-150Vdc	60-150Vdc	60-150Vdc
Rated Charge Current	30A MPPT	30A MPPT	30A MPPT	30A MPPT	30A MPPT	60A MPPT
Voltage Of Floating Charge	13.7V	27.4V	27.4V	50.4V	50.4V	56.8V
DC Output
Voltage For High Voltage Protection	14Vdc	28.5Vdc	28.5Vdc	57Vdc	57Vdc	57Vdc
Low Voltage Protection Voltage	12Vdc	24Vdc	44.8Vdc	44.8Vdc	44.8Vdc	44.8Vdc
5VDC USB Output	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A
12VDC Output Ports	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A	2pcs/Max 2A
Physical
Heat Dissipation/Cooling	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan
Display	Digital LCD	Digital LCD	Digital LCD	Digital LCD	Digital LCD	Digital LCD
Electricity Charging	12V 30A	24V 30A	24V 30A	48V 30A	48V 30A	48V 60A
Ctn Size	390215310mm	440215350mm	515335480mm	515335480mm	605410540mm	780447724mm

Built-in 6000 A+ QualityCycles LiFePO4 LithiumBattery

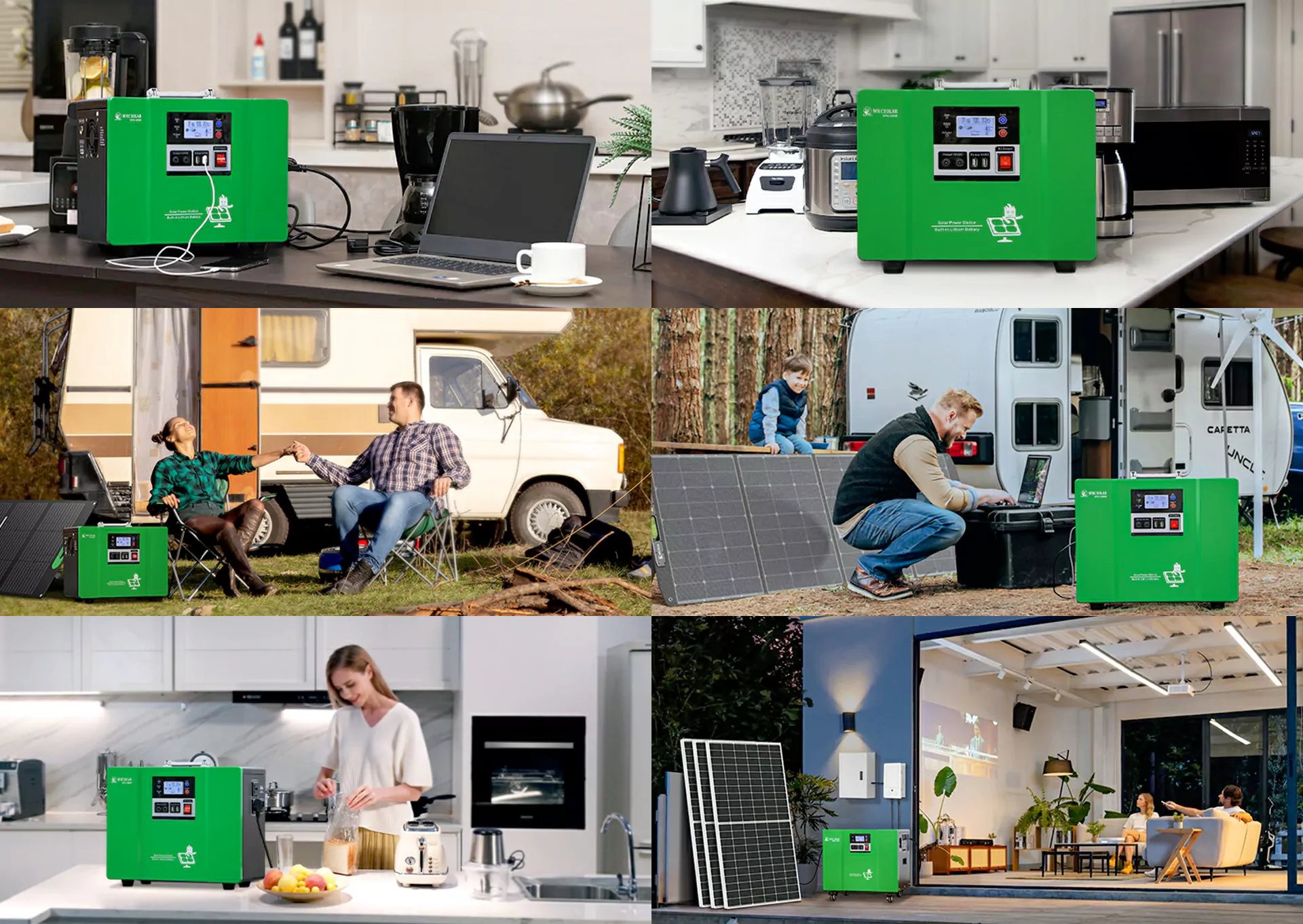

Application :Air-Condition,
Fridge,Fan,Tv,Light etc

Built to Last,Everywhere and Everywhen

Outdoor Activities

Whether you’re camping or hosting an outdoor party, solar power stations can provide reliable power for lighting, music and other entertainment devices to make your experience more enjoyable.

Why Choose WHC SOLAR

Your Reliable Solar Product Provider

Own Brand

We Have Our Oan Brand " WHC SOLAR" Which Is Famous At Home And Abroad, And Our Mission Is To Let The World Not Lack Of Electricity.

Product Design Patents

Currently We Have 9 Product Design Patents, Regional Market Protection, To Help Our Global Partners Could Become A Unique Dealer In The Market.

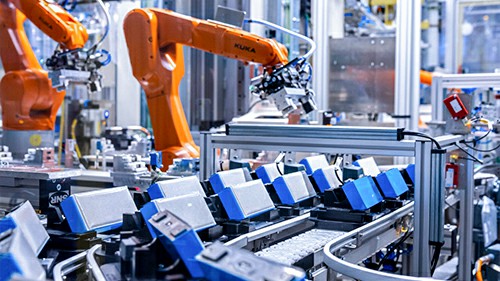

Automatic Production
Lines

Automatic Production Equipments, Complete The Order With Quality And Quantity.

Government's Projects
Experience

Supported By Our Reliable Product Quality And Competitive Price, We've Do Many Large Government Projects In Different Countries, Such As The Solar Street light Project In Nigeria, Tanzania,Etc.

After-sales Service
Support

Professional Technical Team, Provide Technical Services And Quality Assurance.

Meet WHC SOLAR

For more than a decade, WHC SOLAR has been in the manufacturing of various solar products that are exported to various countries. To meet purchasing demands and provide swift customer assistance, we have five warehouses situated in key locations around the world.

Years of Experiences

Satisfied Customers

Automated Production Lines

Oversea Warehouses

WHC SOLAR welcomes you

Rich Production Experience

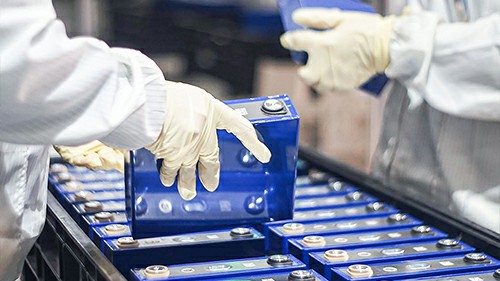

The processing factory has a total area of 200,000 square meters, has 16 years of experience in the production of solar batteries, 14 years of experience in the production of off-grid solar systems, and has applied for 9 patents.

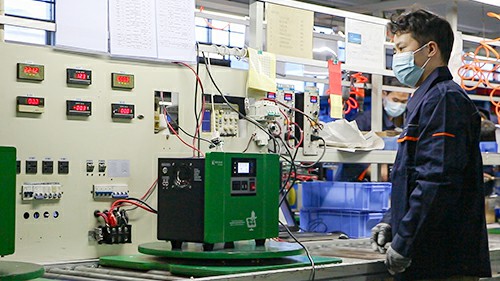

Production Advantages of WHC

Founded in 2009, WHC Solar is a renowned manufacturer and solutions provider specializing in solar batteries, solar panels, solar controllers, solar inverters, solar energy systems, solar street lights, solar water pumps, etc.
